İlan No	1017
İlan Tarihi	12 Haziran 2019
Garanti Süresi	1 Yıl
Durumu	Sıfır

İlan ile ilgili şikayetim var

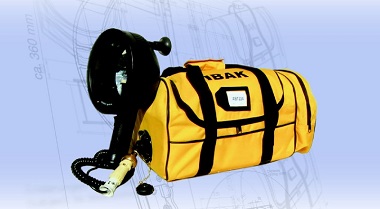

IBAKmarine NHS200H is a daylight signalling lamp in line with the current standards MED

System Technical Data

Approval	DNVGL, Certificate No MED B0000354
Material	Seawater and weather proof synthetic material (polycarbonate)
Type of enclosure	IP56 to EN 60529
Reflector	High polish parabolic glass reflector 150mmØ
Features	Electric signalling Sighting device Connection cable with concentric plug type "HNA" or with 3-pin plug type "BG"
Lamps	Halogen lamp 20W/24V
Range	NHS200H: 300m
Signalling range	4.5 km in daylight 36.0 km at night
Weight	1.2 kg max. 1,5 kg including cable and plug

Data of ABT224 (part of the standard scope of supply)

Features

Storage bag with carrying strap for daylight signalling searchlight
NHS200H and comparment for four coloured filter discs,
( filter discs are not included in the standard scope of supply)

Built-in battery (independent of position, maintenance free and
low-dischargeable) 24V/6.5Ah (min.), with concentric
socket type "HNA" or socket type "BG" and battery charger for 230VAC
(Other supply voltages on request)

Weight

max. 6,0 kg (without lamp)

Dimensions

495 x 84 x 230 mm

Recommended Accessories

Front discs with frame in the colours: red, green, blue, yellow, light reduction screen

Weight

approx. 0.1 kg (each)

Power supply transformer (available on request)
