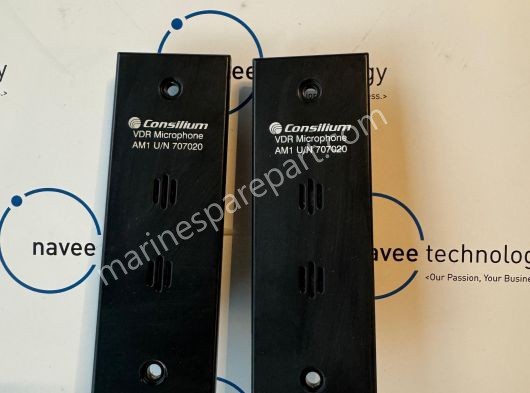

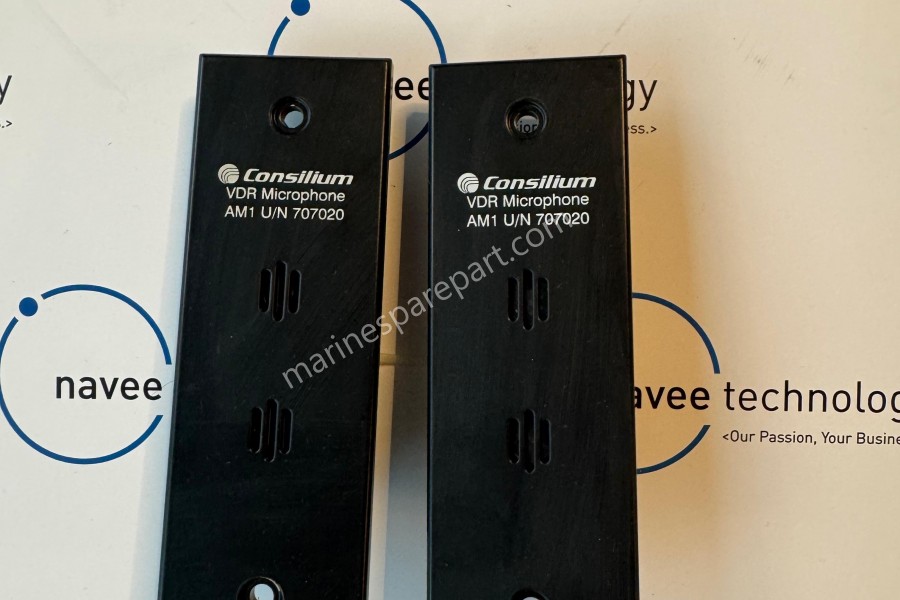

Consilium VDR Microphone – Model AM1U/N707020

Consilium VDR Microphone – Model AM1U/N707020

Identification Data:

• Manufacturer: Consilium (Maritime Safety Systems)

• Model: AM1U (P/N: N707020)

• Type: VDR  Microphone

Key Features:

 Critical Audio Recording

• Designed for SOLAS-compliant VDR/S-VDR systems

• Captures clear bridge communications for incident investigation

 Marine-Optimized Design

• Noise-canceling element for clear voice pickup

• Rugged metal housing with IP-rated protection

 Plug-and-Play Integration

• Standard XLR or screw-terminal connections (verify model variant)

• Compatible with major VDR brands (Consilium/Kongsberg/SAMS)

Technical Specifications:

• Frequency Response: 100Hz–8kHz (±3dB)

• Sensitivity: -35dB ±3dB (1V/Pa at 1kHz)

• Power: Phantom power (12-48V) or passive operation

• Cable: Shielded marine-grade cable (length varies)
