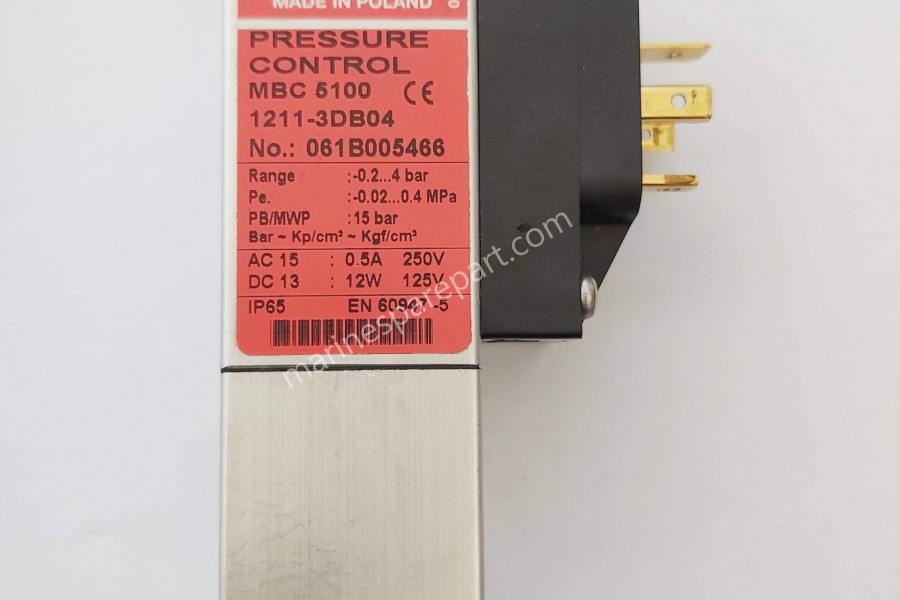

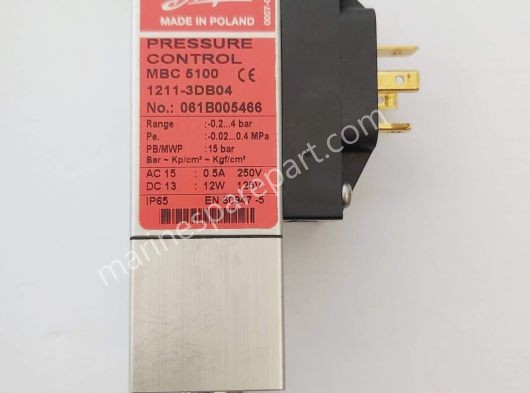

Danfoss Pressure Control – 0,2-4 Bar 061b005466

MBC 5100-1211-3DB04

Danfoss pressure switches are block design to survive in the harsh conditions known from machine rooms onboard ships
Regulating Range:-0.2 to 4 bar
Differential MIN Range: 0.3 bar
Differential MAX Range: 0.45 bar
Max. Working Pressure: 15 bar
Connection Size: Flange
Contact Function: SPDT
Electrical Connection:Pg 9 plug (DIN 43650 A)
Reset: Automatic
