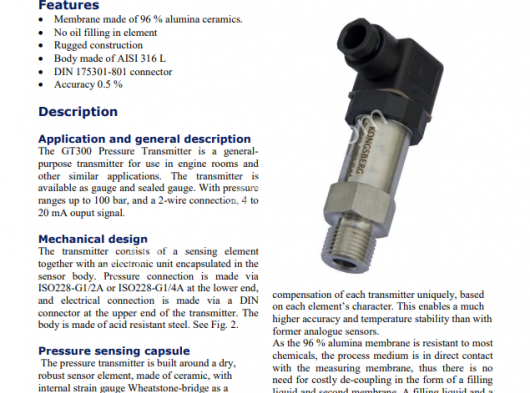

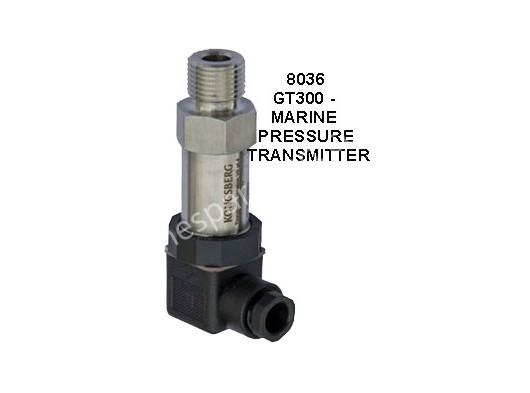

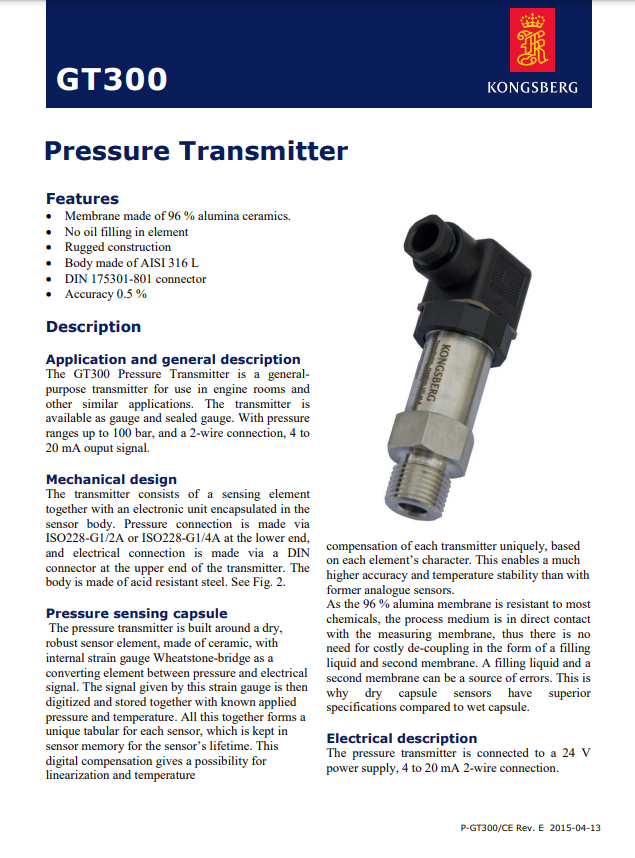

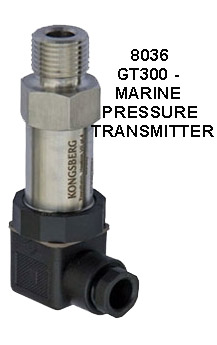

GT300 – MARINE PRESSURE TRANSMITTER

Pressure transmitter for general purposes application in the engine room.

Can be mounted directly to the measuring point – or mounted in a bracket fixed to a bulkhead with a control valve below.

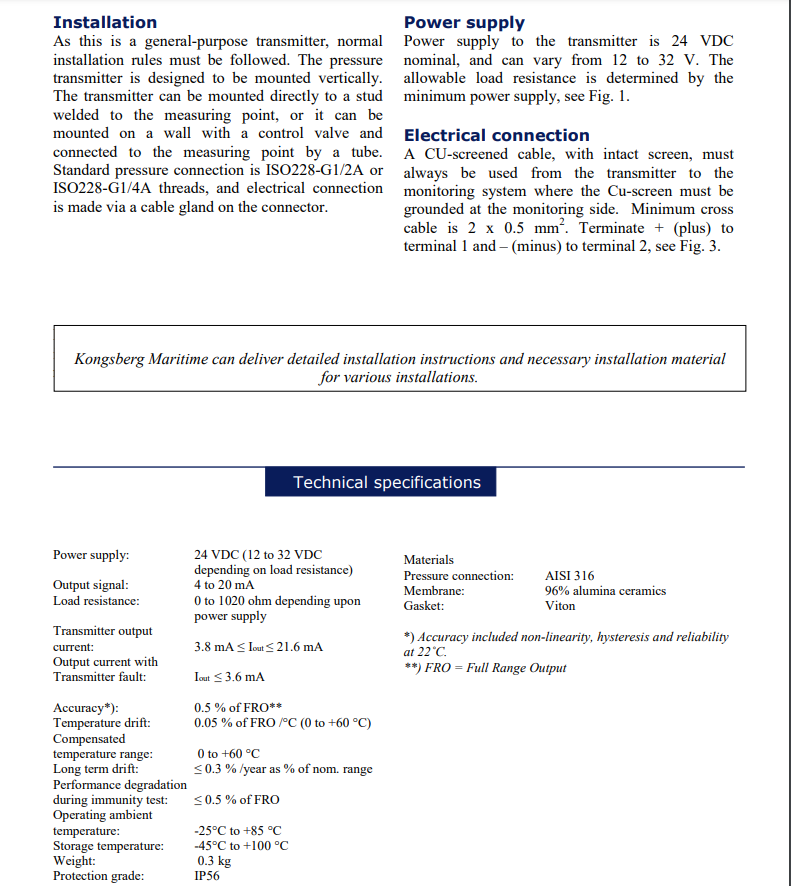

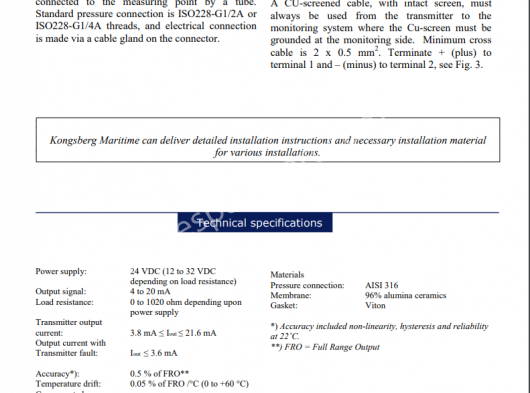

MAIN SPECIFICATIONS

• Pressure connection : 1/2″ and 1/4″ threads
• Electrical connection : Via an M gland on a DIN plug
• Range : 0 to 60 bar gauge
• Accuracy : <±0. 5% of fro></±0.>
• Temperature drift : <±0.05% of fro °c></±0.05%>
• Comp. temperature range : -25 to 85°C
• Long term stability : <±0.2% of fro year></±0.2%>
