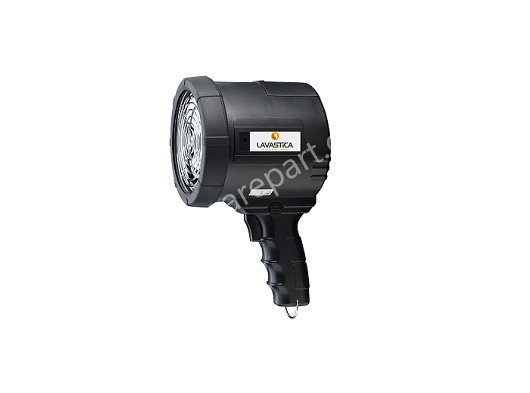

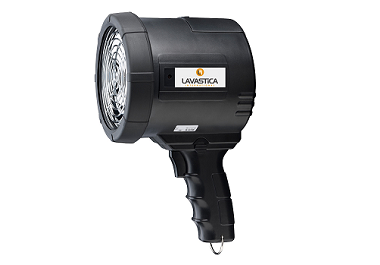

LAVASTICA LAV-FT-02 Flame Detector Test Lamp

The Lavastica LAV-FT-02 Flame detector test lamp activates UV, IR and UV/IR flame detectors which detect in the 185-235 nm UV and the 4.4 μ IR frequency ranges. For UV only detectors the maximum distance is up to 8 meters (26 ft) in the continuous mode and up to 4 m (13 ft) in the pulse mode. The test range for IR and UV/IR detectors is up to 4 meters (13 ft).

Most IR Flame detectors have an extra alarm criterion; analyzing the flicker frequency of a fire. In order to simulate the flame flicker the lamp needs to be pulse operated. For this, the test lamp LAV-FT-02 can be put into the pulse mode by means of a selection switch on the left side of the test lamp. The lamp then emits pulsed light with a frequency of approx. 2 Hz. After the alarm delay time of the detector, the IR or UV/IR flame detector will activate.
