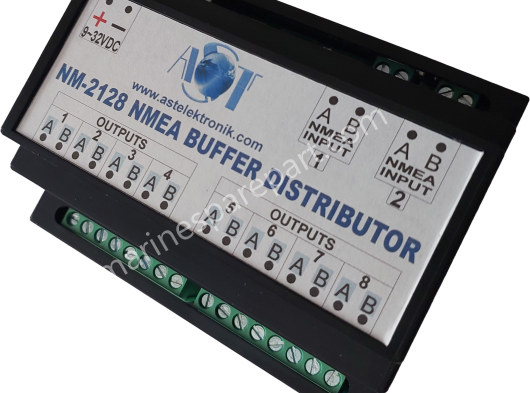

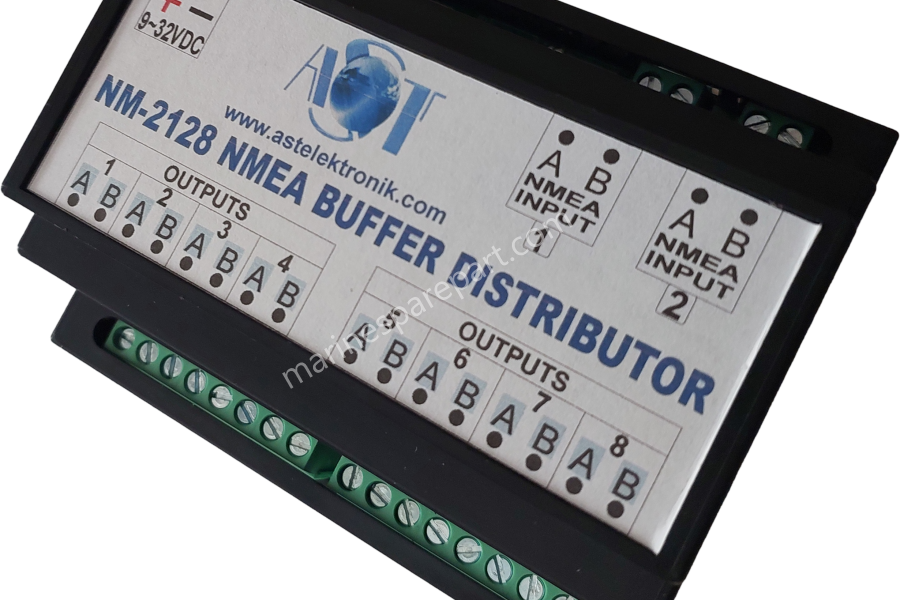

NM-2128 NMEA BUFFER DISTRIBUTOR COMBINER

The NM-2128 NMEA distributor has two independent isolated data inputs and can distribute data to up to eight outputs.The NM-2128 features three operating modes, auto-switching mode, dual mode and combiner mode.In Auto mode, priority is always on the first input.In dual mode the distributor can be used as two independent distributor with one input and four outputs.In combiner mode, it combines data from two inputs and sends it to eight outputs.It also calculates checksum for each NMEA sentence and indicates if error.

Order Information

NM-2128-M Manual-Dual Mode: 1 Input 8 Outputs. Dual mode: Operate as two independent buffers with 1 input and 4 outputs.

NM-2128-A Auto Switch Mode: If input NMEA 1 is lost for 2 seconds the buffer will automatically switch to NMEA input 2.

NM-2128-C Combiner Mode: It combines data from two inputs and sends it to eight outputs.
