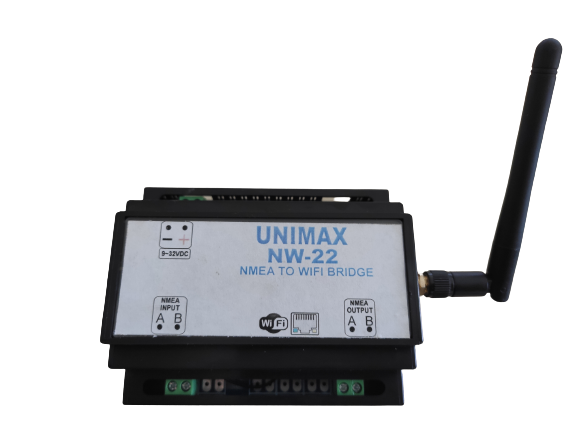

UNIMAX NW-22 is a smart NMEA to Wifi bridge. It sends every NMEA message it receives to the WiFi devices it is connected to. You can see marine navigation information such as GPS, AIS in software applications. Compatible with many marine sofware applications.
It can simply be connected to many wireless devices such as PC and smartphone. Supports TCP and UDP protocols. NW-22 creates its own wifi network. You can connect to the device directly or connect it to another network.
NMEA input support 4800, 9600, 38400, 115200 baud rates. NMEA output transmits data at a constant rate (115200bps).
Also supports ethernet connection optionally.
| Technical Specifications | |
|---|---|
| Supply Voltage | 9-32VDC |
| Protocol | NMEA0183, IEC61162 |
| Input | 1 X Galvanic isolated |
| Output | 1 X RS422, RS485 |
| Compatibility | Wireless standards: IEEE 802.11N, IEEE 802.11g, IEEE 802.11B |
| Speed | 802.11n up to 150Mbps |
| IP support | Supports TCP and UDP broadcast |
| Security | WPA-PSK/WPA2-PSK、WPA/WPA2 Security mechanism |
| Maximum Transfer Rate | 230400bps |
| Max Connections | >20 |
| Dimensions | 105 x 86 x 58 |
