Gross weight	0.21 Kg
Net weight	0.18 Kg
EAN	5702422065982
+ supply	Pin 1
– common	Pin 2
Accuracy, max. +/- FS [%]	0.8 %
Accuracy, typical +/- FS [%]	0.3 %
Adj. zero point and span	No
Ambient temperature range [°C] [Max]	85 °C
Ambient temperature range [°C] [Min]	-40 °C
Ambient temperature range [°F] [Max]	185 °F
Ambient temperature range [°F] [Min]	-40 °F
Approval	ATEX C UR CSA GOST POCC
Approval comments	ATEX Ex nA IIA T3 Gc
Approval standard	6967179 E227388 E31024
Compensated temp. range [°C] [Max]	80 °C
Compensated temp. range [°C] [Min]	0 °C
Compensated temp. range [°F] [Max]	176 °F
Compensated temp. range [°F] [Min]	32 °F
Electrical conn. Male/Female	Male and Female
Electrical connection	DIN-plug
Electrical connection size	Pg 9
Electrical connection standard	EN 175301-803-A
Enclosure rating IP	IP65
Flush diaphragm	No
Intrinsically safe	No
Medium temperature range [°C] [Max]	85 °C
Medium temperature range [°C] [Min]	-40 °C
Medium temperature range [°F] [Max]	185 °F
Medium temperature range [°F] [Min]	-40 °F
Non-linearity BFSL ±FS [%]	0.2 %
Output signal [mA] [Max]	20 mA
Output signal [mA] [Min]	4 mA
Overload pressure max. [bar]	55 bar
Overload pressure max. [psi]	798 psi
Packing format	Multi pack
Pressure connection size	1/4-18
Pressure connection standard	ANSI/ASME B1.20.1
Pressure connection type	NPT
Pressure Male/Female	Male
Pressure range [bar] [Max]	34 bar
Pressure range [bar] [Min]	-1 bar
Pressure range [psi] [Max]	493 psi
Pressure range [psi] [Min]	-14.5 psi
Pressure unit reference	Gauge (relative)
Product family name	AKS
Product Group	Sensors

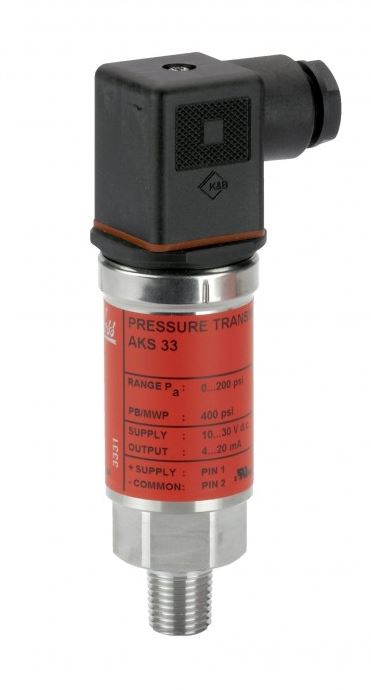

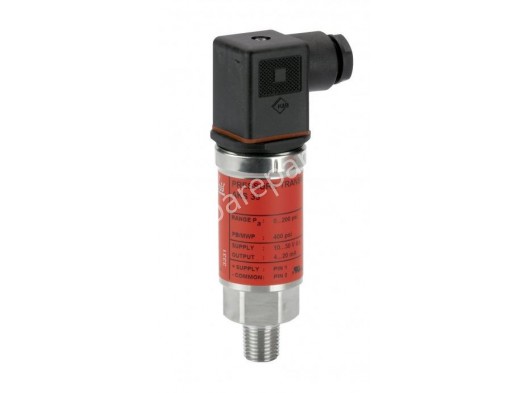

Product name	Pressure transmitter
Product type	AKS 33
Pulse-snubber	No
Quantity per packing format	14 pc
