| İlan No | 1836 |
|---|---|
| İlan Tarihi | 26 Ağustos 2021 |
| Garanti Süresi | 1 Yıl |
| Durumu | Sıfır |

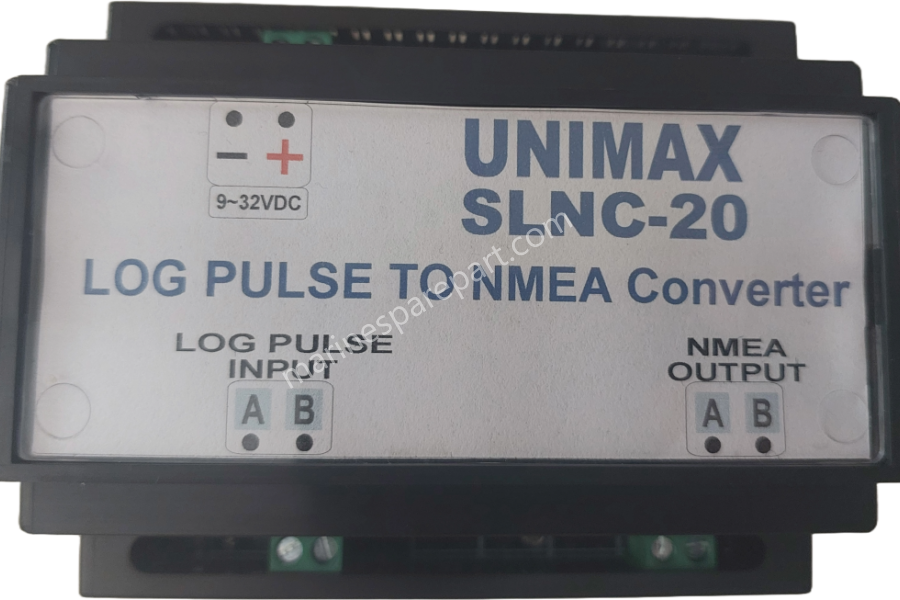

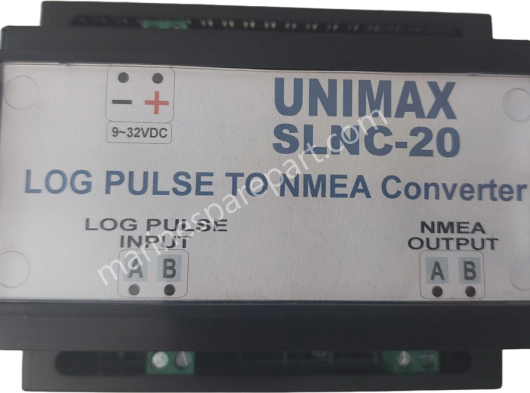

The Log Pulse NMEA Converter interface converts, incoming speed data as contact closure data to NMEA format.
Technical Specifications Supply Voltage 9-32VDC Power Supply Protection Reversed polarity protection
Internal resetable fuseProtocol NMEA0183, IEC61162 Input Configurable with DIP Swithces 200, 400, 800 pulse / nm
Dry or Pulse Signal, 5V Pulse or Dry Contact SignalOutput 1 x RS422 NMEA Data
(2 output optionally)Output Speed Configurable with DIP Swithces 4800, 38400, 115200 bps Output NMEA Sentence $VDVBW,x.x,,A,x.x,x.x,A*hh
$VMVBW,x.x,,A,,,*hh
$VWVHW,,T,,M,x.x,N,x.x,K*hh
$GPVTG,,T,,M,x.x,N,x.x,K*hhScrew type terminals Case-Dimensions ABS DIN Rail Mount Box
Width: 105 mm
Depth: 86 mm
Height: 58 mm
