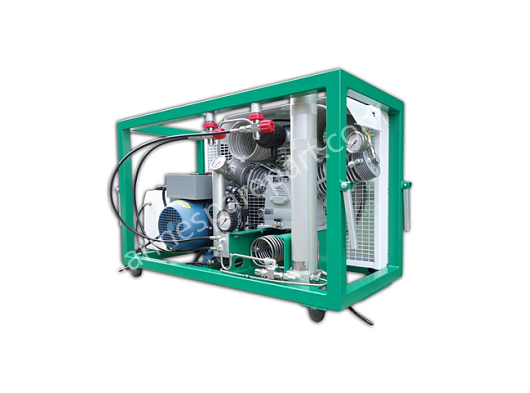

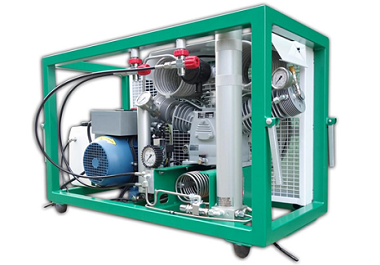

TEMİZ HAVA KOMPRESÖRÜ NOTUS N10-ET OPEN

Model

: Notus, N10-ET OPEN

Air Delivery FAD

: 170 lit/min ± 5%

Max Working Pressure

: 350 bar

Stages

: 3

Cylinders

: 3

Cylinder Arrangement

: W

1^st stage cylinder diameter

: 65mm

2^nd stage cylinder diameter

: 36mm

3^rd stage cylinder diameter

: 14mm

Piston Stroke

: 48mm

Speed Rotation

: 1450 rpm

1^st Stage Pressure

: 3,2 - 3,6 bar

2^nd Stage Pressure

: 26 - 30

Transmission

: V Belt

Motor power

: 4 kW/400-440V/50-60Hz

(Class F, IP 55)

Oil Capacity

: 1,2 lit synthetic compressor oil

Air outlet temperature

: 5 - 8 ^oC above ambient

temperature

Max. permissible ambient

temperature

: +5⁰ to +45⁰ C

Cooling air flow min required

approximately

: 1440m³/ hr

Dimensions (L-W-H)

: 110x53x68cm

Weight

: 129 – 135 Kg

Filling Time of 1 Cyl.10ltr @ 225bar

: 13,2 min ± 5%

Filling Time of 1 Cyl.10ltr @ 300bar

: 17,6 min ± 5%

Max. inclination of compressor

: 15⁰
