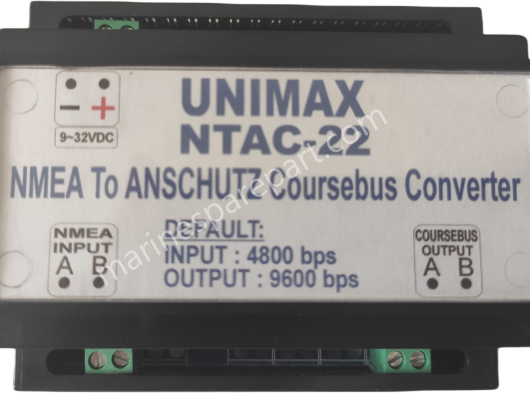

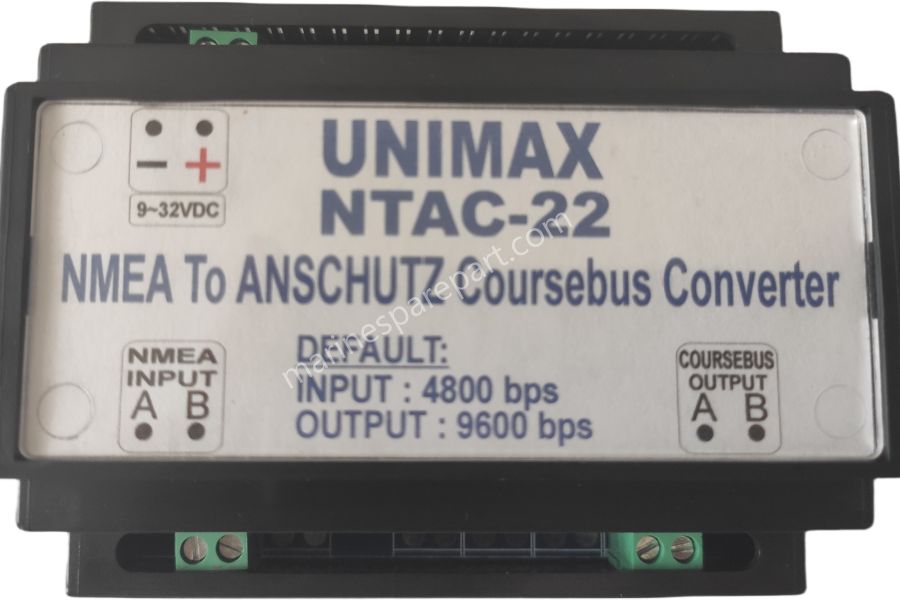

NMEA Anschutz converter is used to NMEA heading data to Anschutz course bus data format.
In the case of replacing the installed defective Anschutz gyro compass, by converting the NMEA data from the device to be installed to the coursebus format, you can quickly operate the repeaters and other devices using the course bus protocol untouched. You do not have to pull cables and install new devices. In this way, the installed devices are not affected by the replacement. This saves time and costs.
The converter accepts HDT, ROT, THS telegrams to convert signal to Coursebus data. Default input speed is 4800bps, output speed is 9600bps. Different input-output speed options can be adjusted with DIP switches on the board.
The NTAC-22 can be powered within the range of 9~32 VDC. The nominal voltage of 24 VDC is advised for powering the device in normal operation. Power input port has a protection for incorrect polarity connection of the supplying voltage.
It is support STD-20 and STD-22 gyrocompass. The converter has been tested on STD-20 and STD-22 gyros.
| Technical Specifications | |
|---|---|
| Supply Voltage | 9-32VDC Power supply |
| Power Supply Protection | Reversed polarity protection Internal resetable fuse |
| Protocol | NMEA0183, IEC61162 or Course bus data |
| Input data | $xxHDT, $xxROT, $xxTHS or Course bus data |
| Output data | Anschutz Coursebus data or $xxHDT, $xxROT, $xxTHS |
| Input | 1 x Galvanic isolated Input |
| Output | 1 x RS422 2 x RS422 (Optional) |
| Input Speed | Configurable with DIP Swithces 4800, 9600, 38400, 115200 bps |
| Output Speed | Configurable with DIP Swithces 4800, 9600, 38400, 115200 bps |
| Screw type terminals | |
| Case - Dimensions | ABS DIN Rail Mount Box Width: 105 mm Depth: 86 mm Height: 58 mm |
