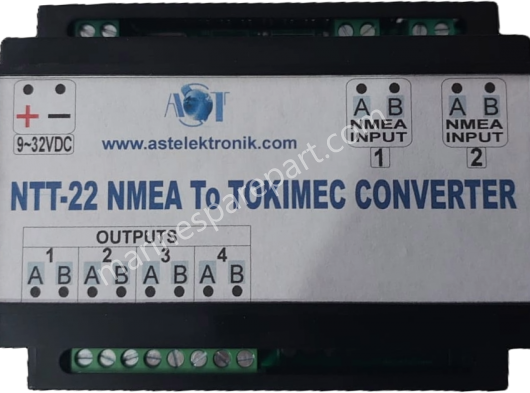

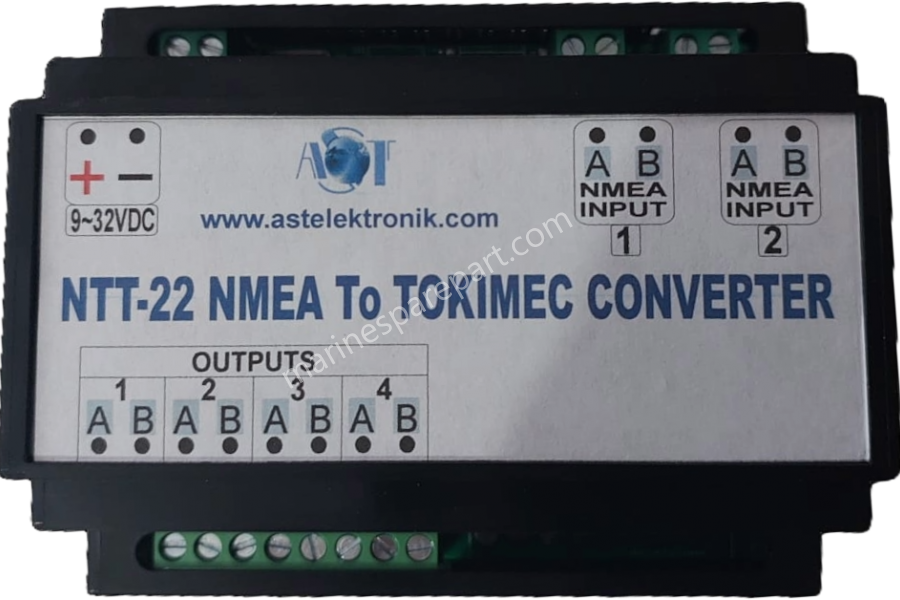

NMEA Tokimec gyro converter is used to NMEA heading information to Tokimec gyro format.
NMEA Tokimec gyro converter accepts HDT, ROT, THS telegrams to convert signal to Tokimec data. It receives speed information from supported NMEA sentences, GPS or speedlog devices. Different input-output speed options can be adjusted with DIP switches on the board.
The NTT-22 can be powered within the range of 9~32 VDC. The nominal voltage of 24 VDC is advised for powering the device in normal operation. Power input port has a protection for incorrect polarity connection of the supplying voltage.
Technical Specifications | |
|---|---|
Supply Voltage | 9-32VDC Power supply |
Power Supply Protection | Reversed polarity protection |
Input Protocol | NMEA0183, IEC61162 |
Input data | $HEHDT, $GPHDT, $HCHDT $GNHDT,$HETHS, $GPTHS,$GNTHS,$HCTHS Heading Input Data |
Output data | Tokimec Gyro format |
Input | 2 x Galvanic isolated Input |
Output | 4 x RS422 |
Input Speed |
