WATER MIST LANCE

Standard：conform to MSC.365(93) as amendment

Application

The ships constructed on or after 1 January 2016 designed to carry containers on or above the weather deck shall carry at least one water mist lance.

Structure and Material

Water mist lance : SS316

Norminal Pressure and flow : 50L/min @0.6Mpa

Maximum Working Pressure : 1 Mpa

Jetting Range : 6m @0.6 Mpa

Inlet Dimension : DN25

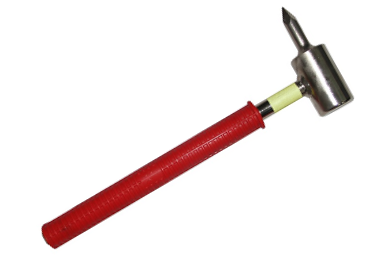

Material of Impact hammer : 45# ( plating nickel on surface )

Drill size :∅19mm,77mm in depth

Length of Impact Hammer : 478mm

Material of Spary lance : SS316

Switch : DN25 Ball valve made of copper alloy

Mist Nozzle : 16x∅ 2mm holes around lance chip

Length of Spray lance : 520mm

Inlet Coupling : STORZ 25A

Hammer: 45# steel ( nickel plated )
